Thanks to Shaggy39 i now have a blackfoot III to build. My first purchase from the club and an excellent service.

So those who are interested a blackfoot III build thread is coming over the next few days.

I have a 11T esc thrown in that i will couple with a stock anderson M5 15T motor. Will see if it all works together ok.

I also Have a pair of new hopup CVD's that I suppose I should use. No Idea on the benifits of these.

Enjoy

[Grumpy pants]

I'm looking forward to this thread, I really enjoyed your Delta one.

Keep up the good work!

[Vrdetailing]

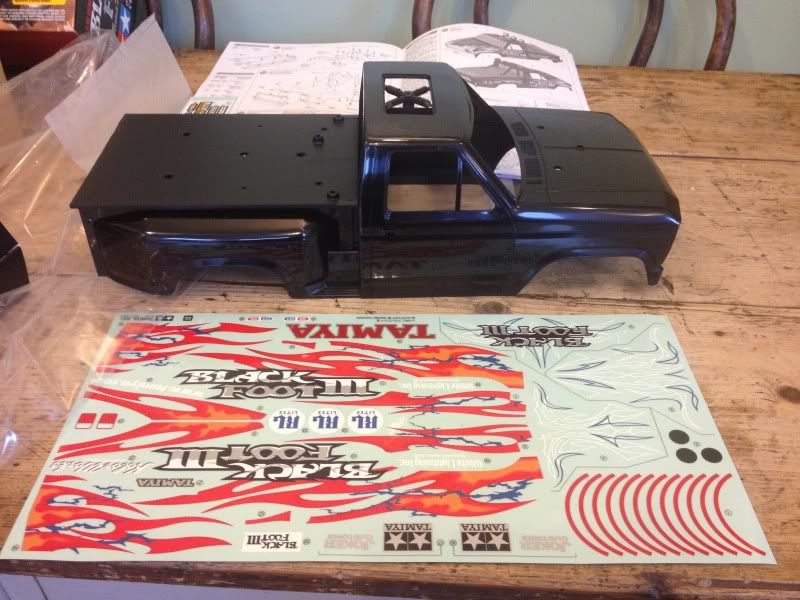

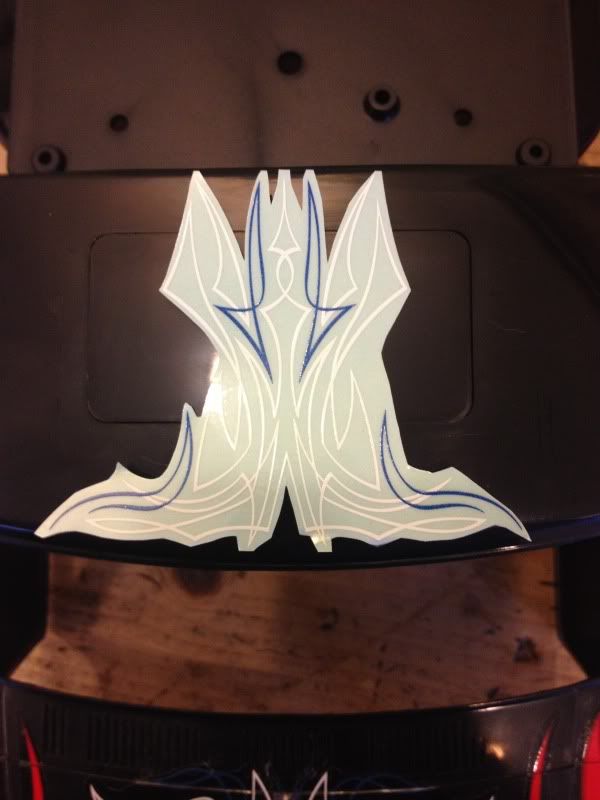

Decals going on first so I can laquer over and get it dry

[Tamiya Era]

Nice Black Body,,

[Vrdetailing]

Got a few on then had the call of beer and fast and furious 6

Will get more done tomorrow as no kids and wife working late

[Vrdetailing]

Why do I have to glue a sunroof in that's black plastic !!

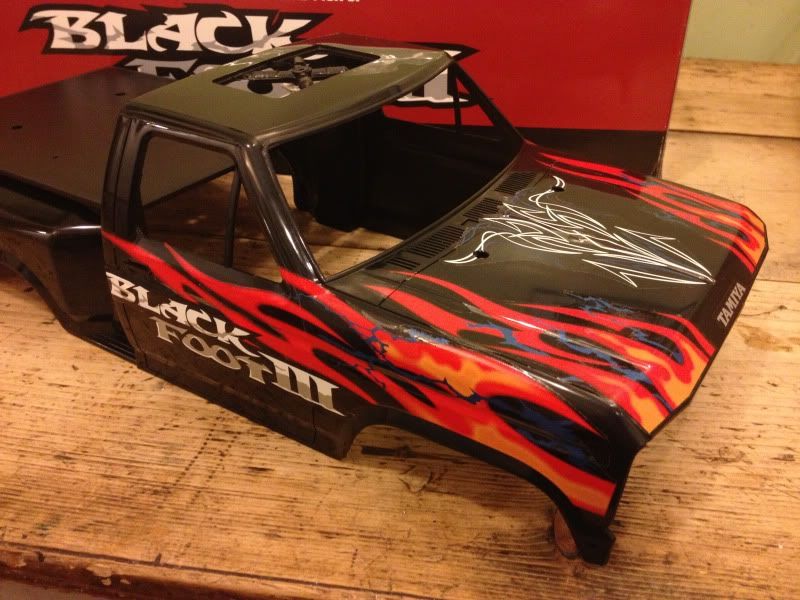

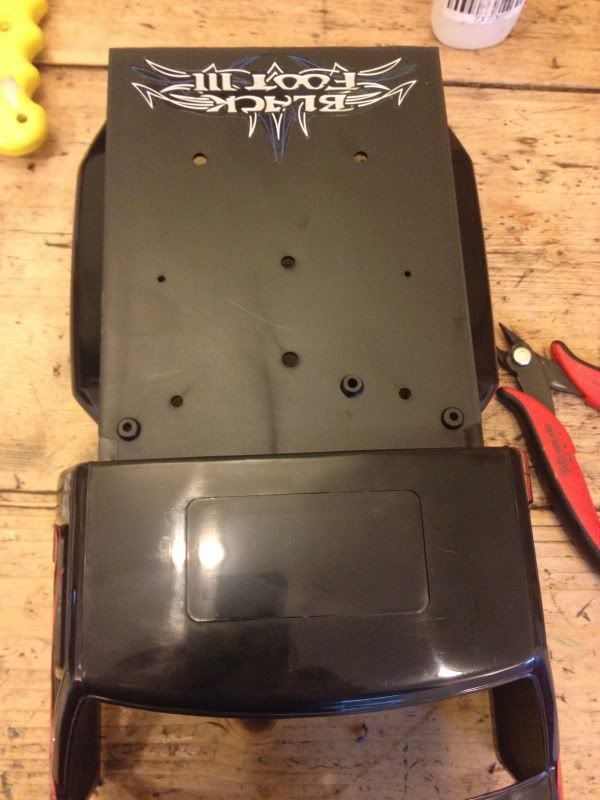

Cut the decals quite close as the clear shows on the black

Ready for lacquer

[Vrdetailing]

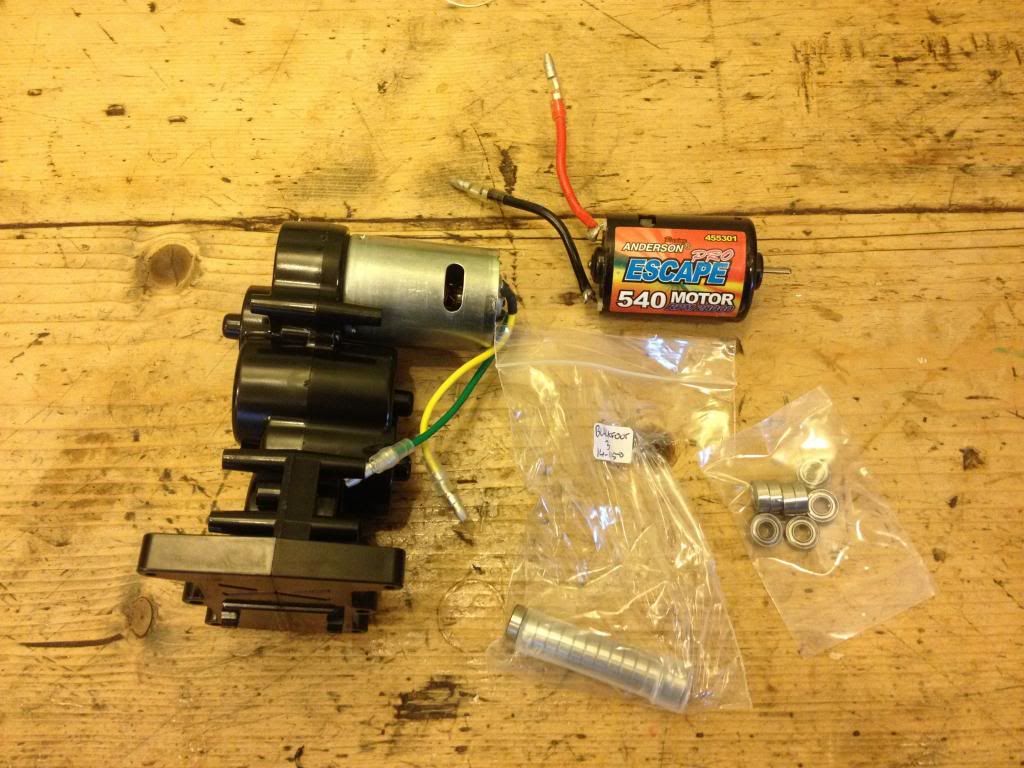

Time to disassemble the ready made gearbox to upgrade the motor and bearings

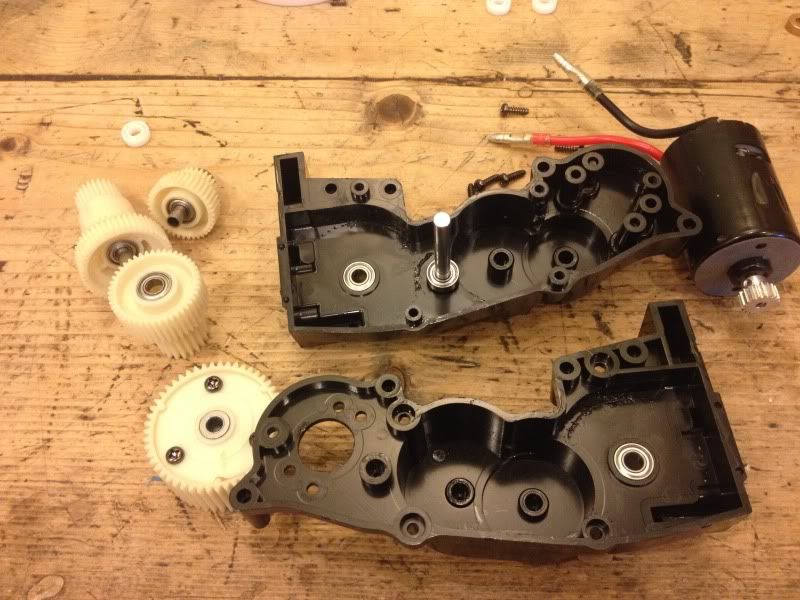

Gearbox apart

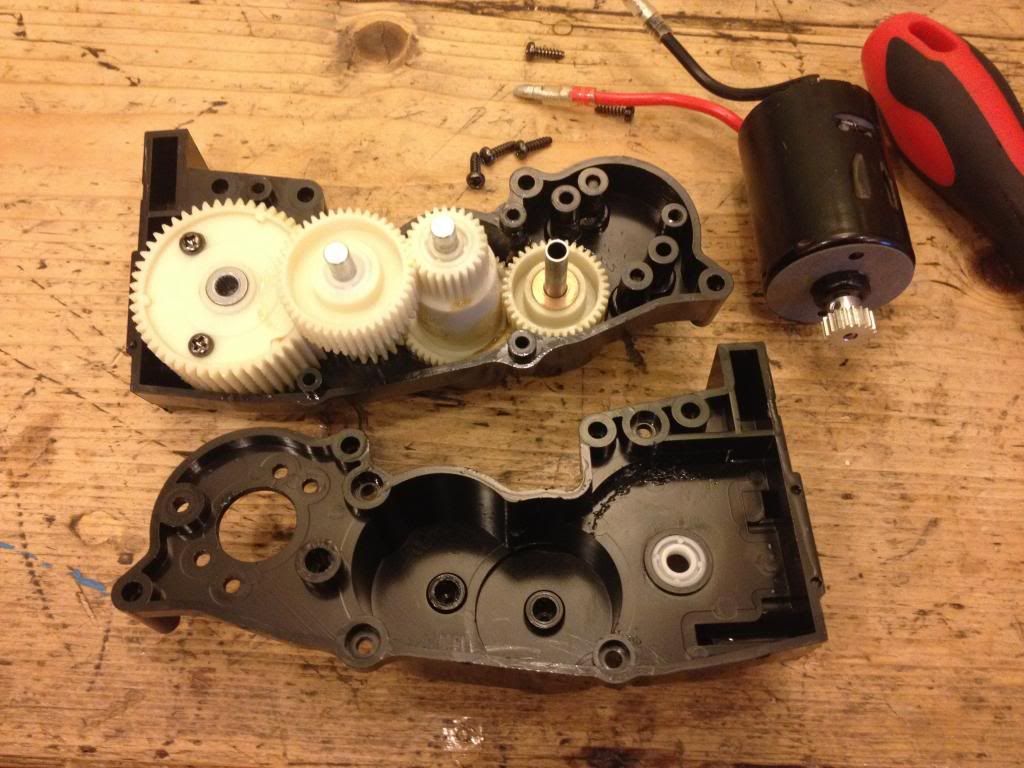

Bearings in

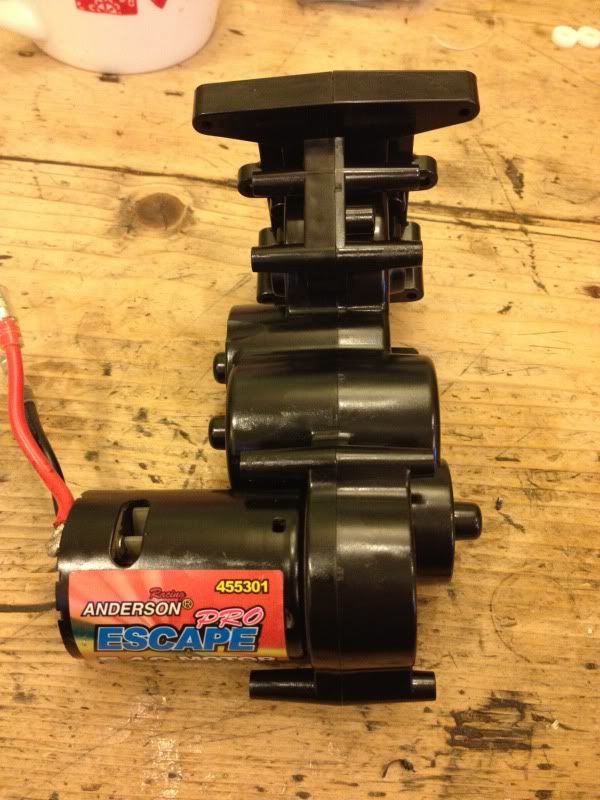

And re assembled

[Vrdetailing]

Testing the electrics... All good so far

Rear arms

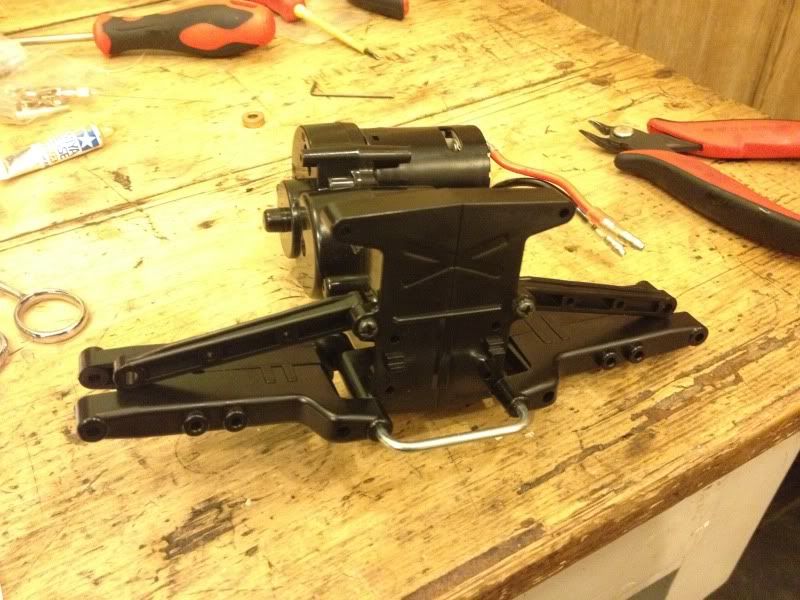

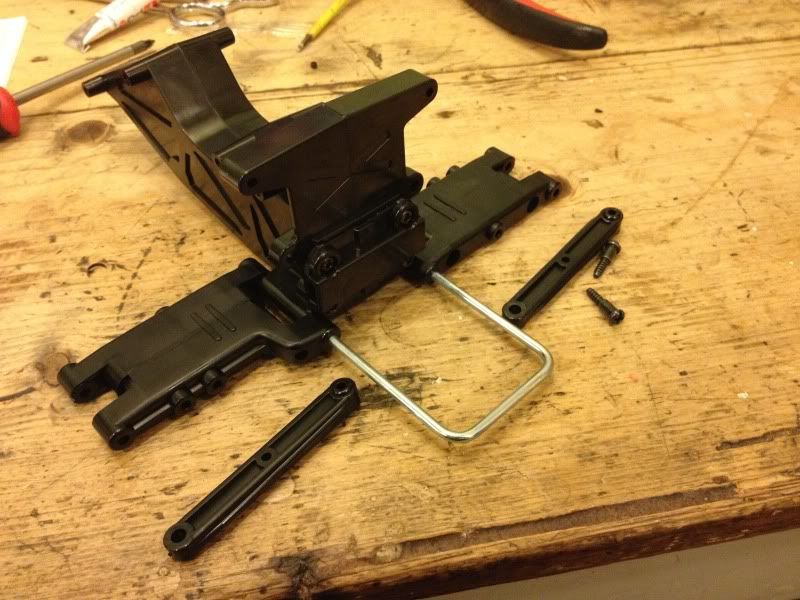

And assembled

[wolfdogstinkus]

Aren't the marks on the arms supposed to line up?, or are you just testing us again?

[Vrdetailing]

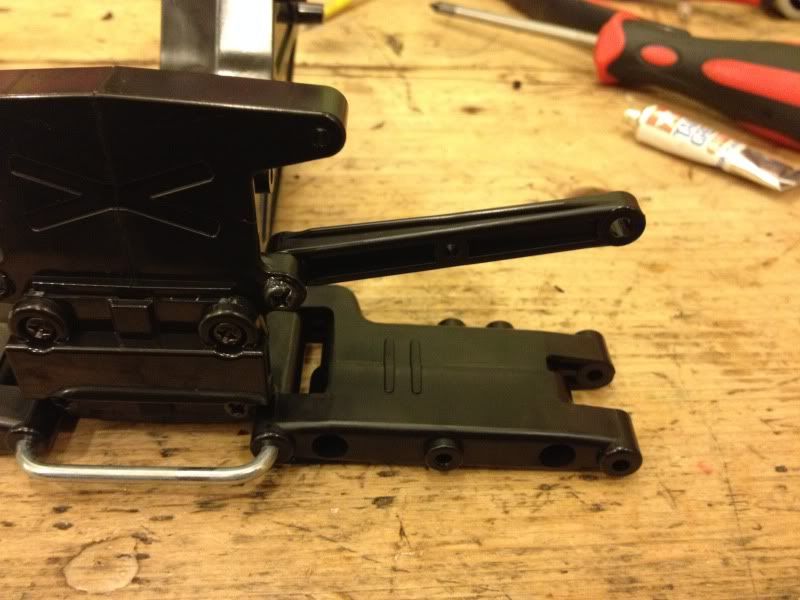

Installing the arms

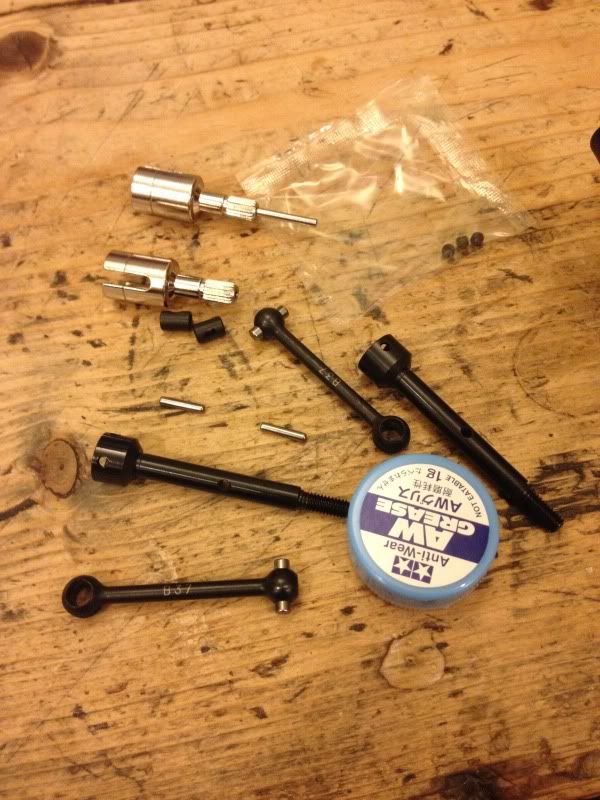

Cvd components

And assembled

[Vrdetailing]

Aren't the marks on the arms supposed to line up?, or are you just testing us again?

Now you got me going to check lol

[wolfdogstinkus]

Now you got me going to check lol

It looks like they line up in the manual, but in your picture it looks like one may be wrong?.

[Vrdetailing]

Yep my bad glad you spotted it now

[Vrdetailing]

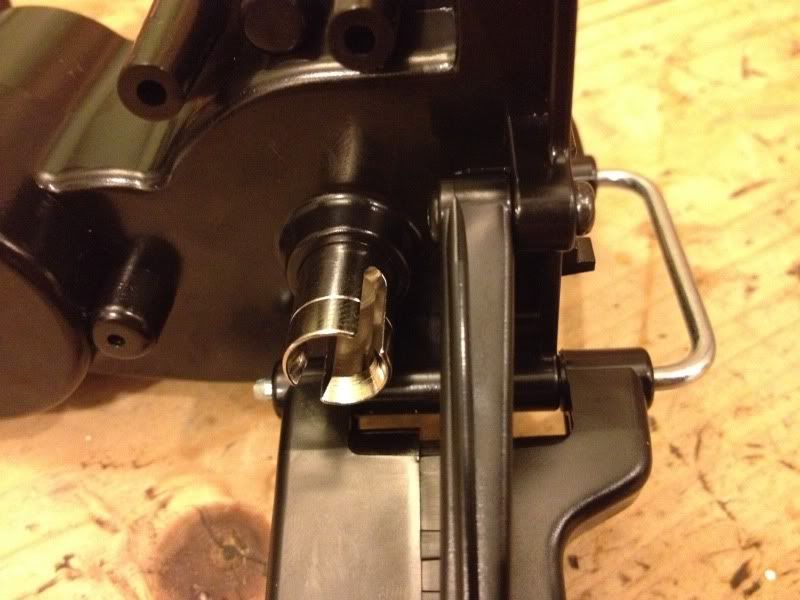

Drive cups

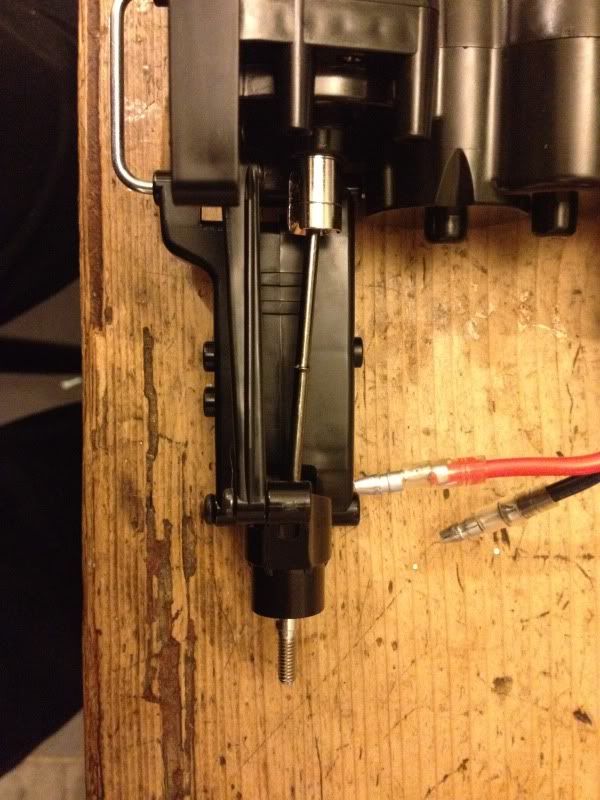

Ready to install drive shafts and hubs

[Vrdetailing]

Turns out the cvd set was wrong and for a frog so originals substituted back

Drive shafts look at an angle but checked the manual twice so must be right

[wolfdogstinkus]

Yep my bad glad you spotted it now

I do like a good build thread.

Glad to be able to help for a change instead of just posting rubbish all the time.

[Vrdetailing]

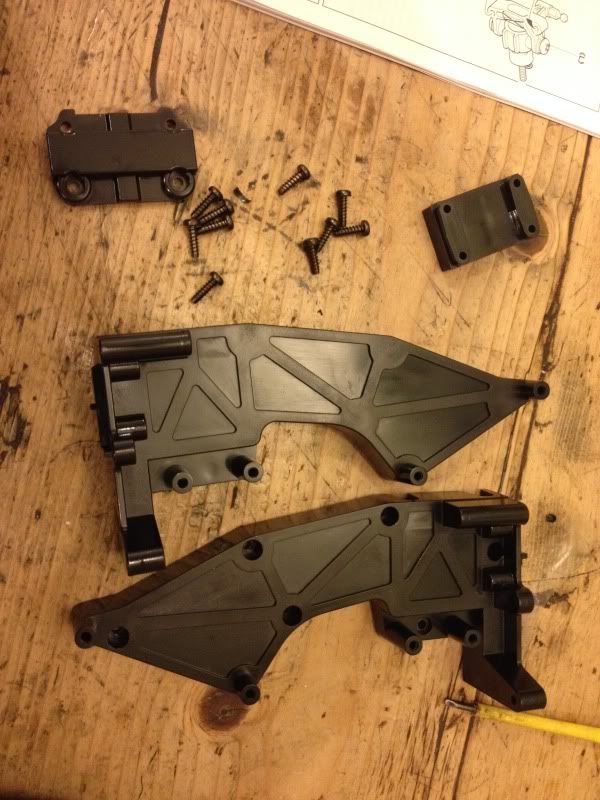

Front frame components

Assembled with arm components

Arms ready for mounting

[Vrdetailing]

Arms mounted

Front hub components

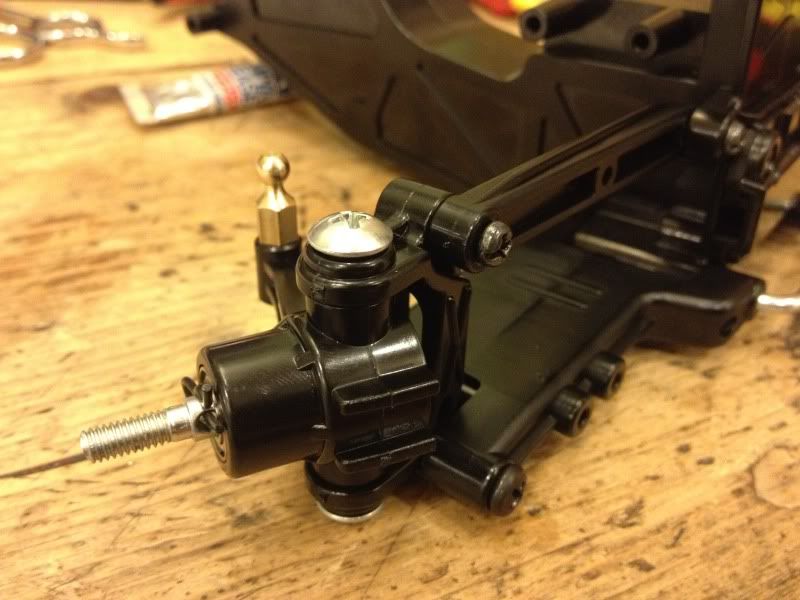

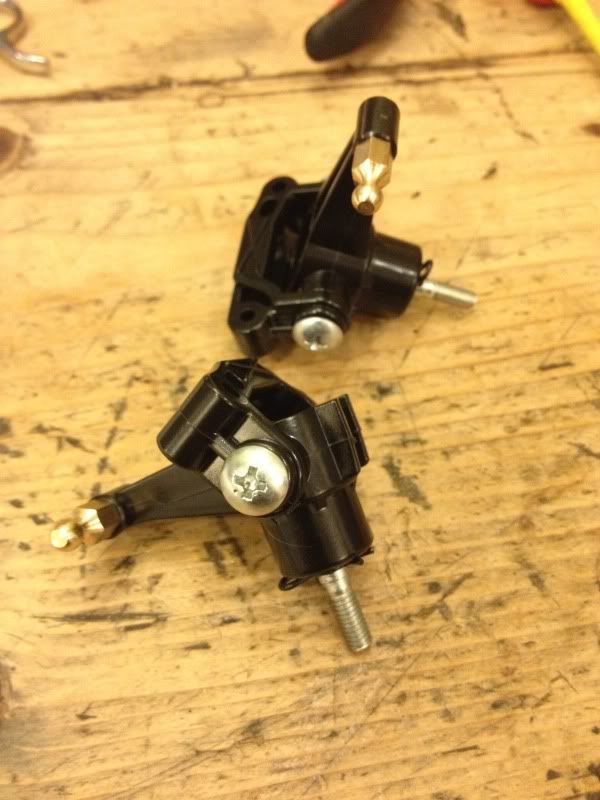

Assembled hubs

[Vrdetailing]

I had a few attempts to get tis right so follow the manual carefully. I had to check and the body pins are removed later

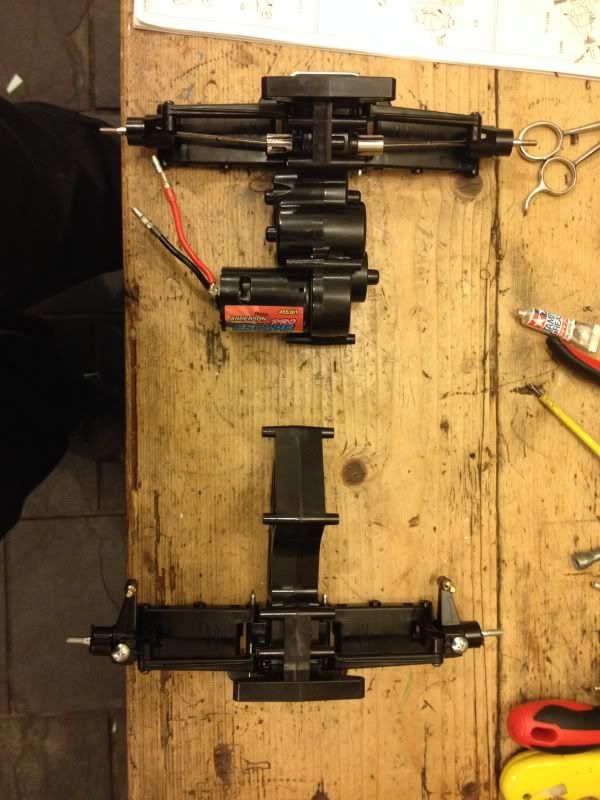

Front and rear assembly

[Vrdetailing]

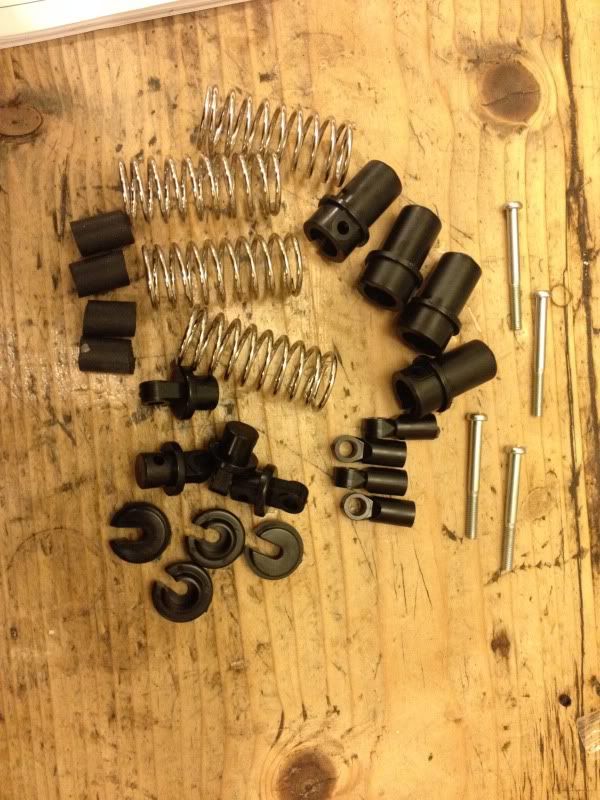

Suspension components

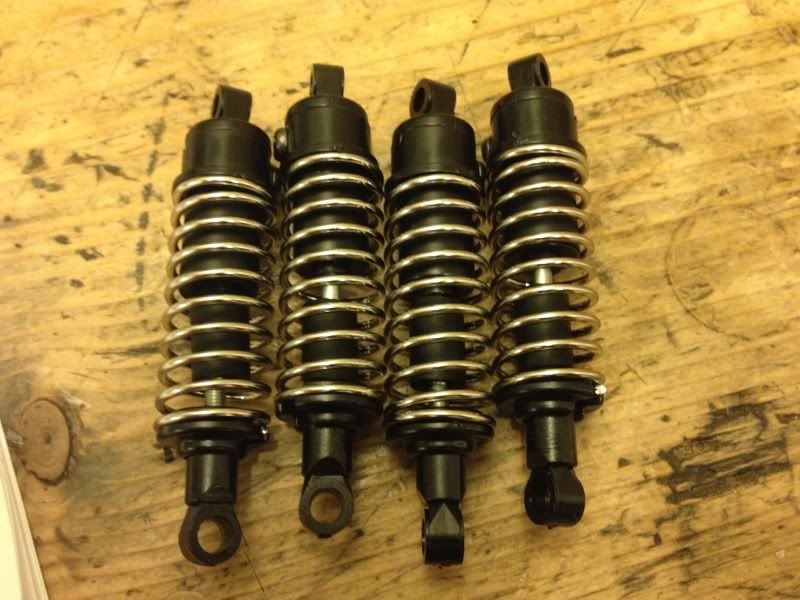

Assembled shocks

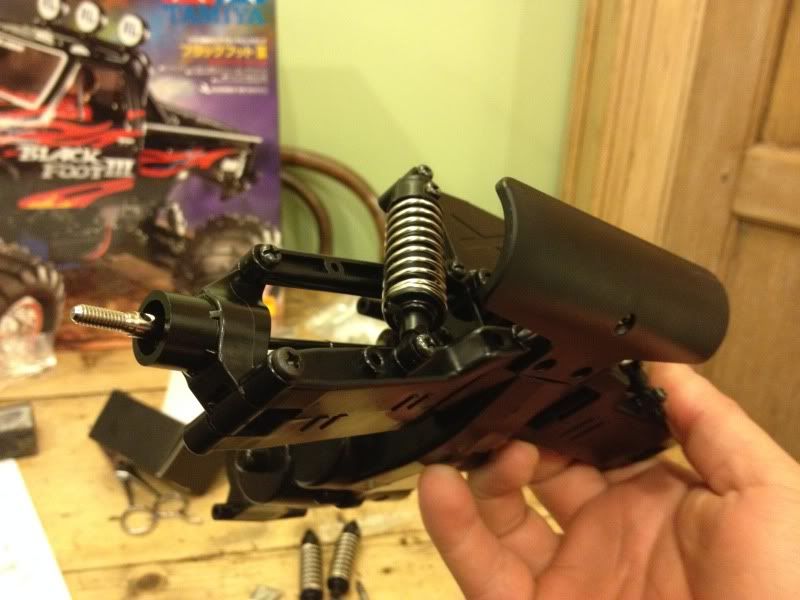

Rear shocks mounted

[Vrdetailing]

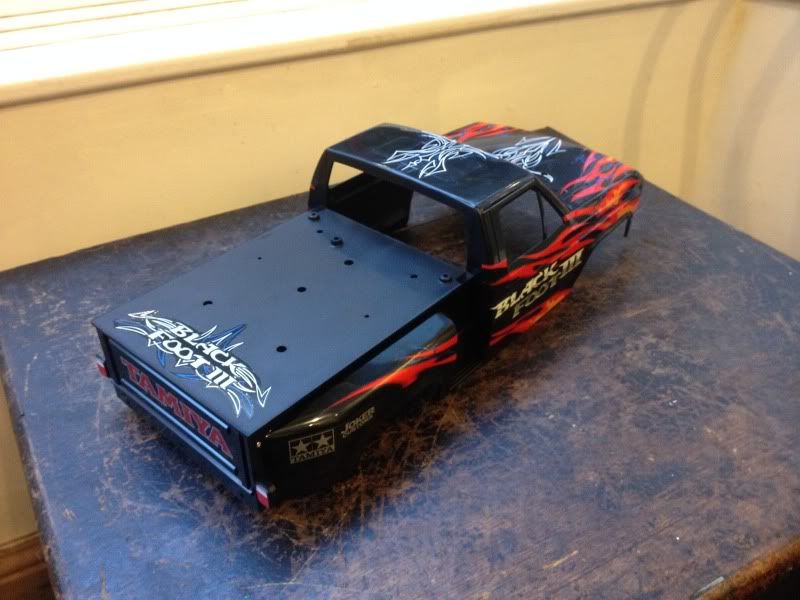

Enough for today... Run out of clear coat but is looking good so far

[Vrdetailing]

Now what to do with the windows... Don't like the brown tint... Do I black them or use a little flip lacquer I have left hmm

[wolfdogstinkus]

i have just had a look at the driveshafts on my WR-02, (similar model but with shorter arms), they look slightly angled but it is exaggerated on yours because of the longer arms.

[Vrdetailing]

I thought I had seen some of the parts before ... I have a ww2

[bromvw]

Metal sealed bearings - good move . Rubber seals - a even better idea if it will ever see any dirt or water ,
